Elyra
Concept
About Project

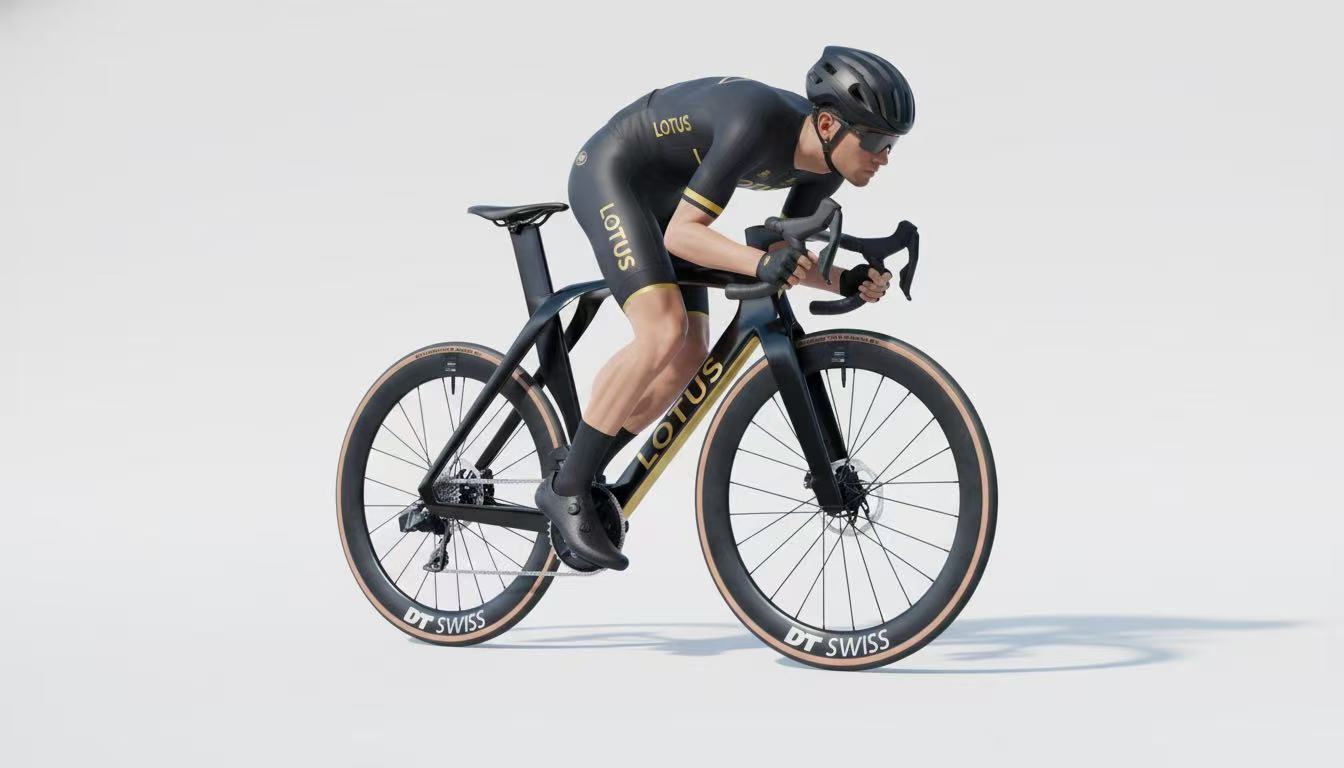

A time trial bike redesigned from the Lotus aerodynamic philosophy
Year
2025
Duration
14 Weeks
Skills
Brand Research, Sustainable design thinking,
3D modeling and CAD, visualization and rendering
About Lotus
Lotus stands alone as a brand dedicated to pure driver’s cars. Innovative engineering, cutting-edge technologies and advanced materials ensure that every Lotus proves the value of achieving performance through light weight.
Pure
Performance
Engineering
LOTUS Brand Vision
" Adding power makes you faster on the straights,
subtracting weight makes you faster everywhere. "
Colin Chapman
The Pain Point
Competitive bikes generally fall into two categories: road bikes and time trial (TT) bikes. TT bikes are purpose-built for time trial racing on controlled courses. However, some riders need the performance of a TT bike but, due to cost or other constraints, resort to modifying a conventional road bike.
These makeshift solutions are neither safe nor professionally engineered.

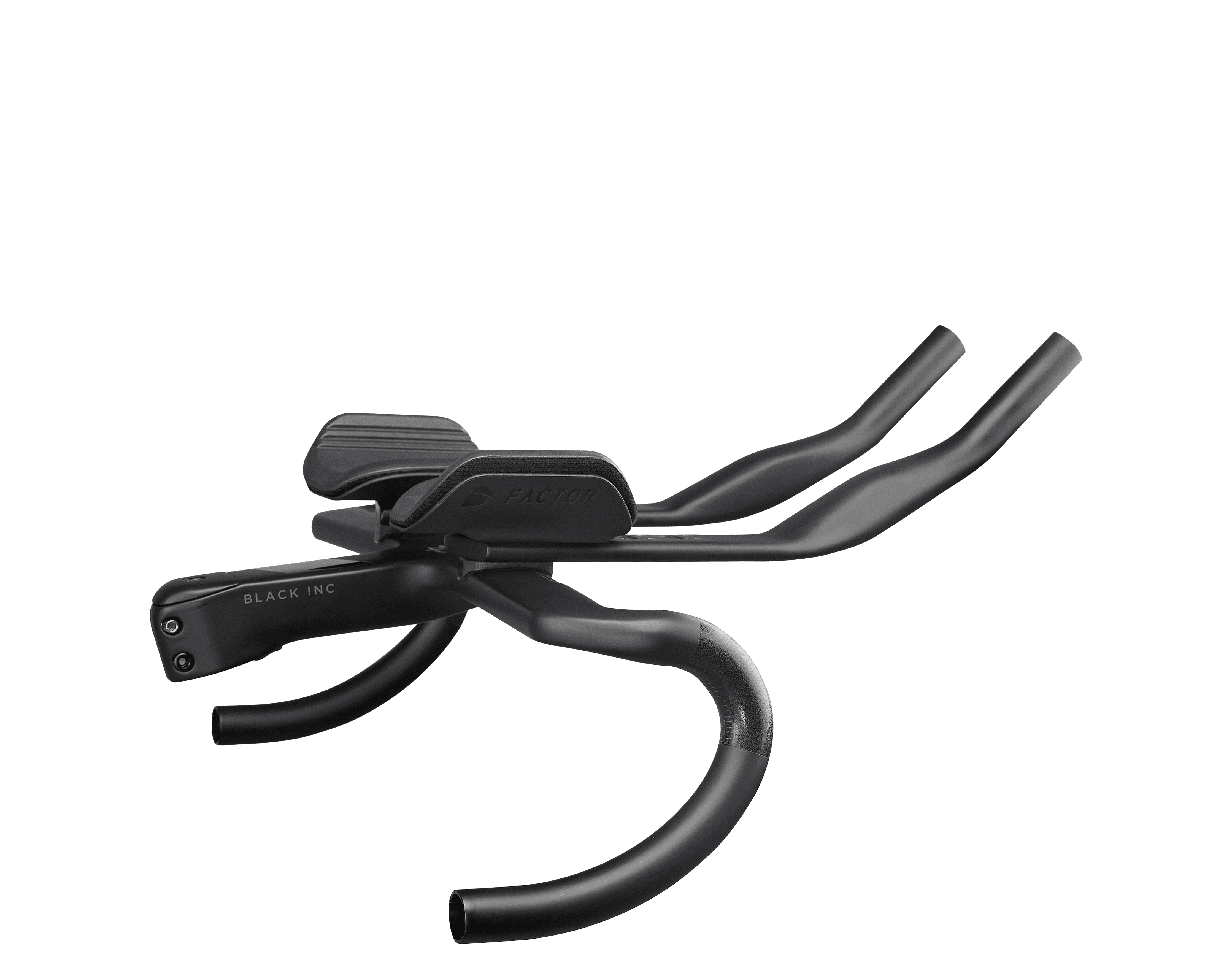

TT Aero Clip On Bars

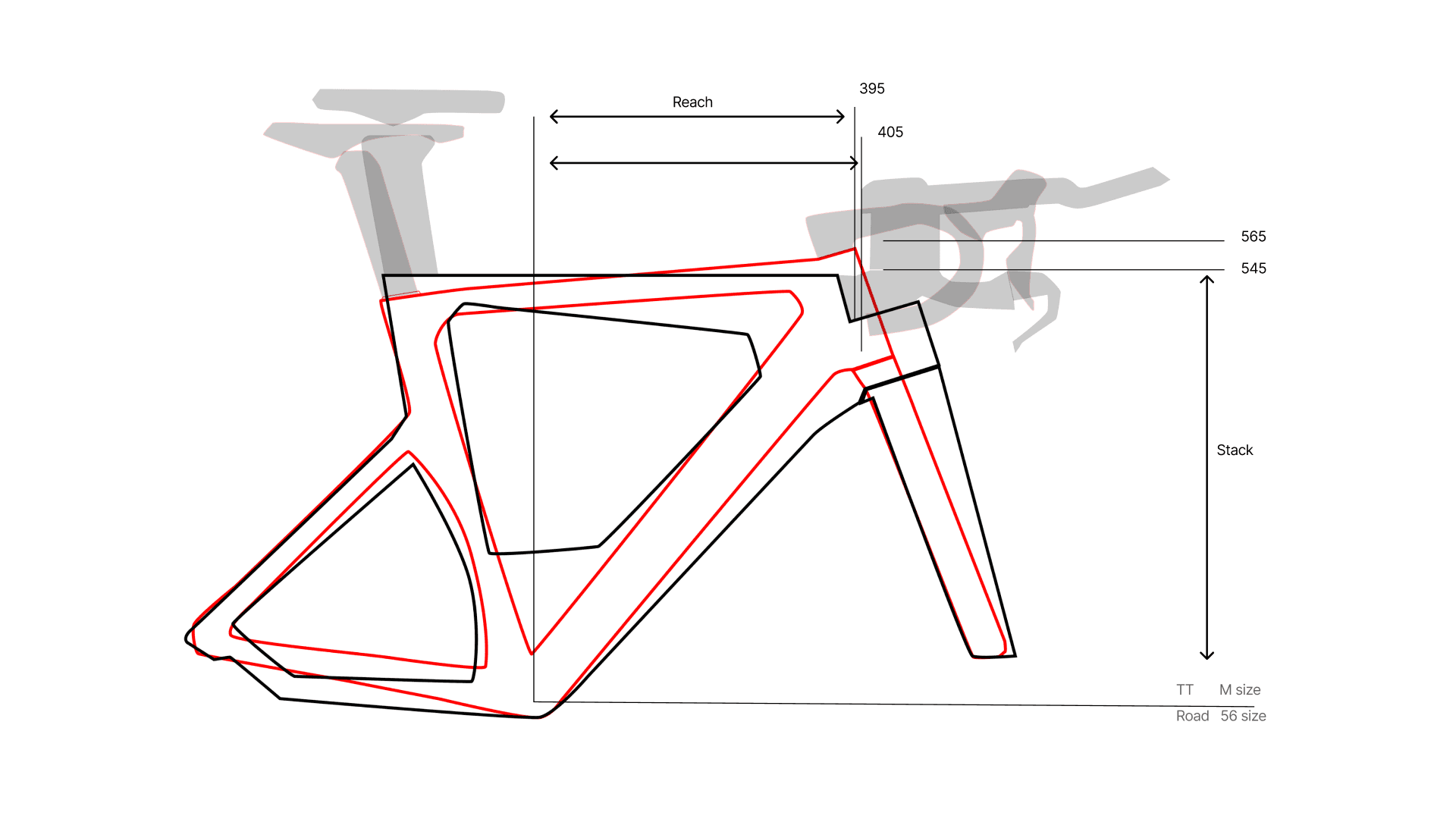

Comparison

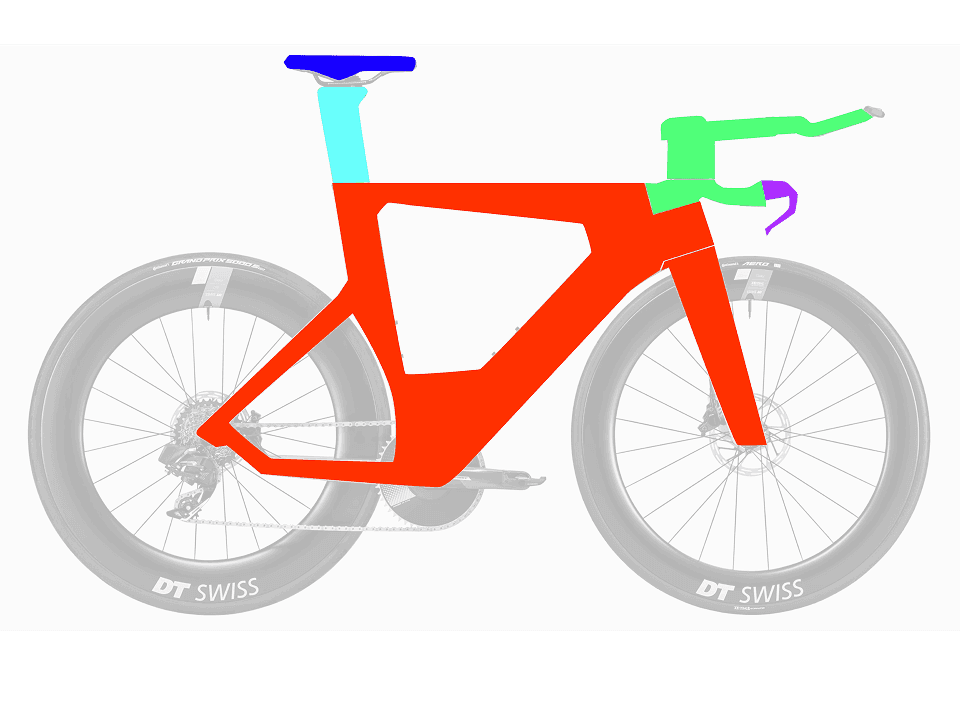

Road bike geometry is more focused on comfort and control;
TT frames are more aggressive, enabling riders to keep an extremely aerodynamic riding position.
Quick Mode Switching
Quickly switch between the two modes. Can adapt to different cycling scenarios
Aerodynamic Design
Aerodynamic Optimization Using CFD Design Tools
Details
Process
Moodboard

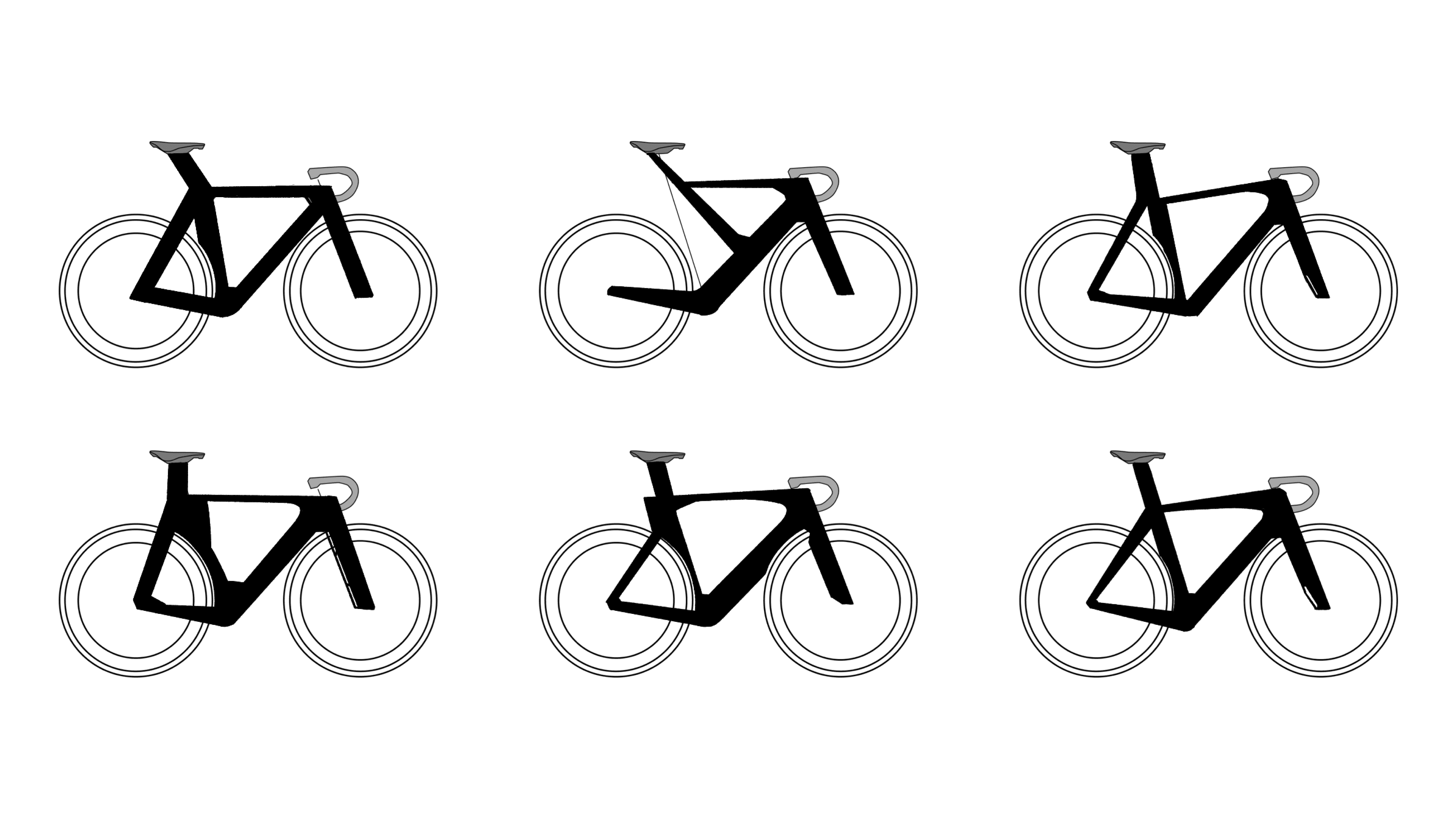

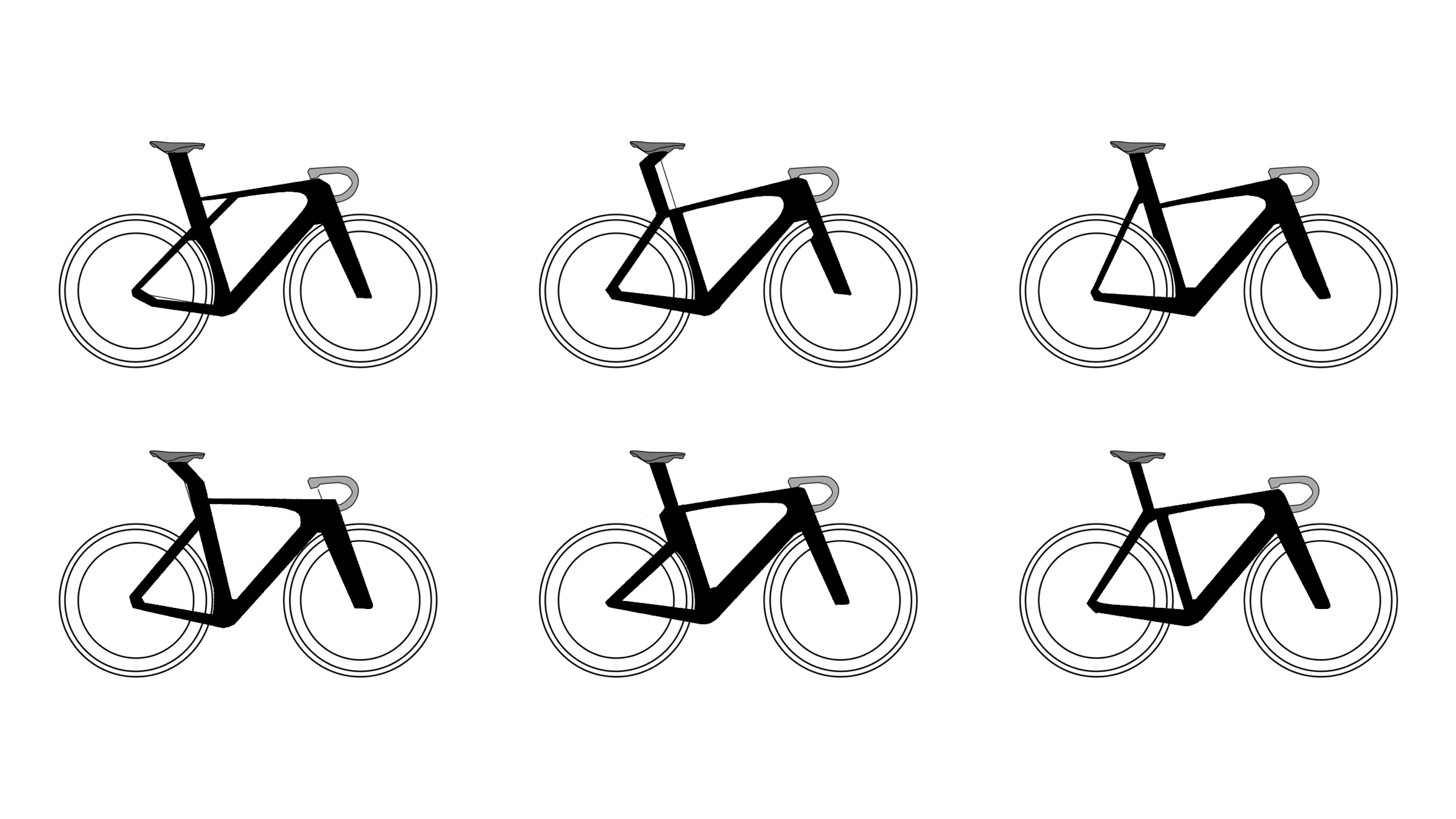

Ideations

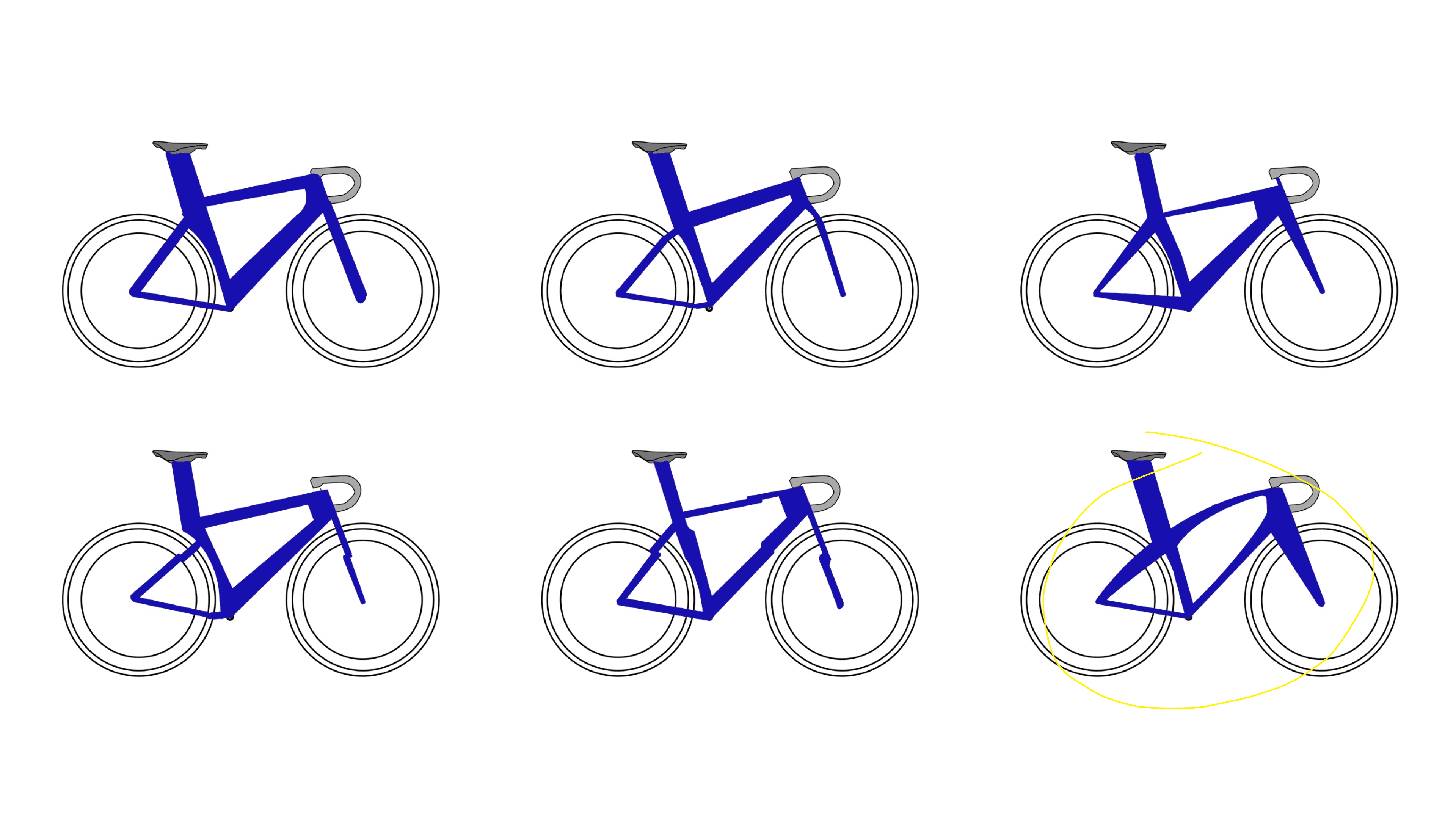

Quick Side View Sketch
Using AI for Design Exploration
Exploring Handlebar Details
